利用CNN识别图片

具体CNN的原理以及应用请看上一篇文章。废话不多说，直接上代码，看运行效果

利用CNN识别image的源代码

# -- coding: utf-8 --

"""
@author: victor

Convolutional Neural Network Example
Build a convolutional neural network with Tensorflow
This example is using TensorFlow layers API
see 'convolutional_network_raw' example for a raw TensorFlow
implementation with variables
"""

#from future import division,print_function,absolute_import


#Import MNIST data
from tensorflow.examples.tutorials.mnist import input_data
mnist=input_data.read_data_sets("MNIST_data/",one_hot=False)

#import module
import tensorflow as tf
import matplotlib.pyplot as plt
import numpy as np

#Training parameters
learning_rate=0.001
num_steps=1000
batch_size=128

#Network parameters
num_input=784#MNIST data input(img shape:28*28)
num_classes=10#MNIST total classes(0-9 digits)
dropout=0.25#Dropout,probability to drop a unit

#Create the neural network
def conv_net(x_dict,n_classes,dropout,reuse,is_training):

    #Define a scope for reusing the variables
    with tf.variable_scope('ConvNet',reuse=reuse):
        #tf Estimator input is a dict,in case of multiple inputs
        x=x_dict['images']


        #MNIST data input is a 1-D vector of 784 features(28*28 pixels)
        #Reshape to match picture format [Height x Width x Channel]
        #Tensor input become 4-D:[Batch Size,Height,Width,Channel]
        x=tf.reshape(x,shape=[-1,28,28,1])


        #Convolution Layer with 32 filters and a kernel size of 5
        conv1=tf.layers.conv2d(x,32,5,activation=tf.nn.relu)

        #Max Pooling(down-sampling) with strides of 2 and kernel size of 2
        conv1=tf.layers.max_pooling2d(conv1,2,2)



        #Convolution Layer with 64 filters and a kernel size of 3
        conv2=tf.layers.conv2d(conv1,64,3,activation=tf.nn.relu)

        #Max Pooling(down-sampling) with strides of 2 and kernel size of 2
        conv2=tf.layers.average_pooling2d(conv2,2,2)


        #Flatten the data to a 1-D vector for the fully connected layer
        fc1=tf.contrib.layers.flatten(conv2)



        #Fully connected layer(in tf contrib folder for now)
        fc1=tf.layers.dense(fc1,1024)

        #Apply Dropout(if is_training is False,dropout is not applied)
        fc1=tf.layers.dropout(fc1,rate=dropout,training=is_training)

        #Output layer,class prediction
        out=tf.layers.dense(fc1,n_classes)

    return out



#Define the model function(following Tf Estimator Template)

def model_fn(features,labels,mode):

    #Build the neural network
    #Because Dropout have different behavior at training and prediction time
    #we need to create 2 distinct computation graphs that still share the same weights
    logits_train=conv_net(features,num_classes,dropout,reuse=False,is_training=True)
    logits_test=conv_net(features,num_classes,dropout,reuse=True,is_training=False)



    #Predictions
    pred_classes=tf.argmax(logits_test,axis=1)
    pred_probas=tf.nn.softmax(logits_test)


    #If prediction mode,early return
    if mode==tf.estimator.ModeKeys.PREDICT:
        return tf.estimator.EstimatorSpec(mode,predictions=pred_classes)


    #Define loss and optimizer
    loss_op=tf.reduce_mean(tf.nn.sparse_softmax_cross_entropy_with_logits(
         logits=logits_train,labels=tf.cast(labels,dtype=tf.int32)))

    optimizer=tf.train.AdamOptimizer(learning_rate=learning_rate)
    train_op=optimizer.minimize(loss_op,global_step=tf.train.get_global_step())


    #Evaluate the accuracy of the model
    acc_op=tf.metrics.accuracy(labels=labels,predictions=pred_classes)


    #TF Estimators requires to return a EstimatorSpec,that specify
    #the different ops for training,evaluating,...
    estim_specs=tf.estimator.EstimatorSpec(
                mode=mode,
                predictions=pred_classes,
                loss=loss_op,
                train_op=train_op,
                eval_metric_ops={'accuracy':acc_op})

    return estim_specs


#Build the Estimator
model=tf.estimator.Estimator(model_fn)



#Define the input function for training
input_fn=tf.estimator.inputs.numpy_input_fn(
         x={'images':mnist.train.images},
         y=mnist.train.labels,
         batch_size=batch_size,
         num_epochs=None,
         shuffle=True)

#Train the Model
model.train(input_fn,steps=num_steps)


#Predict single images
n_images=10

#Get images from test set
test_images=mnist.test.images[:n_images]

#Prepare the input data
input_fn=tf.estimator.inputs.numpy_input_fn(
         x={'images':test_images},shuffle=False)

#Use the model to predict the images class
preds=list(model.predict(input_fn))



#Display
for i in range(n_images):
    plt.imshow(np.reshape(test_images[i],[28,28]),cmap='gray')
    plt.show()
    print('Model prediction:',preds[i])
    plt.xlabel('Model prediction:'+str(preds[i]),fontsize=14)
    plt.pause(0.5)

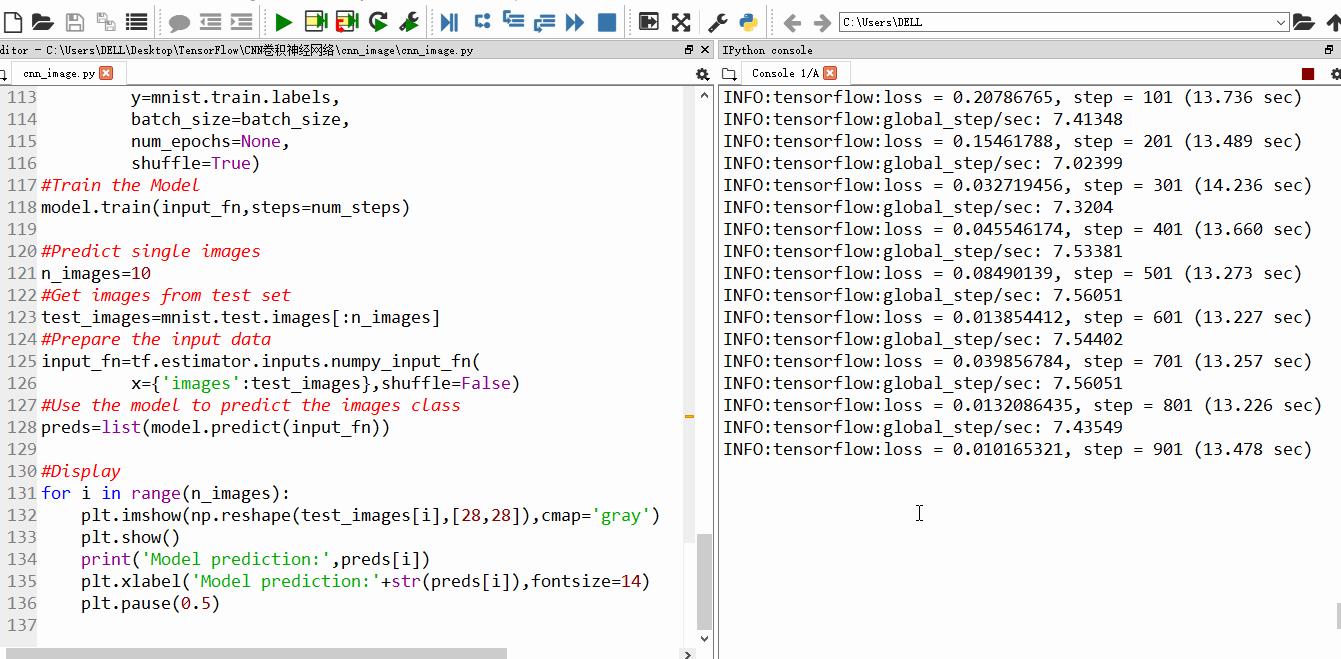

运行效果

查看Tensor board上的效果

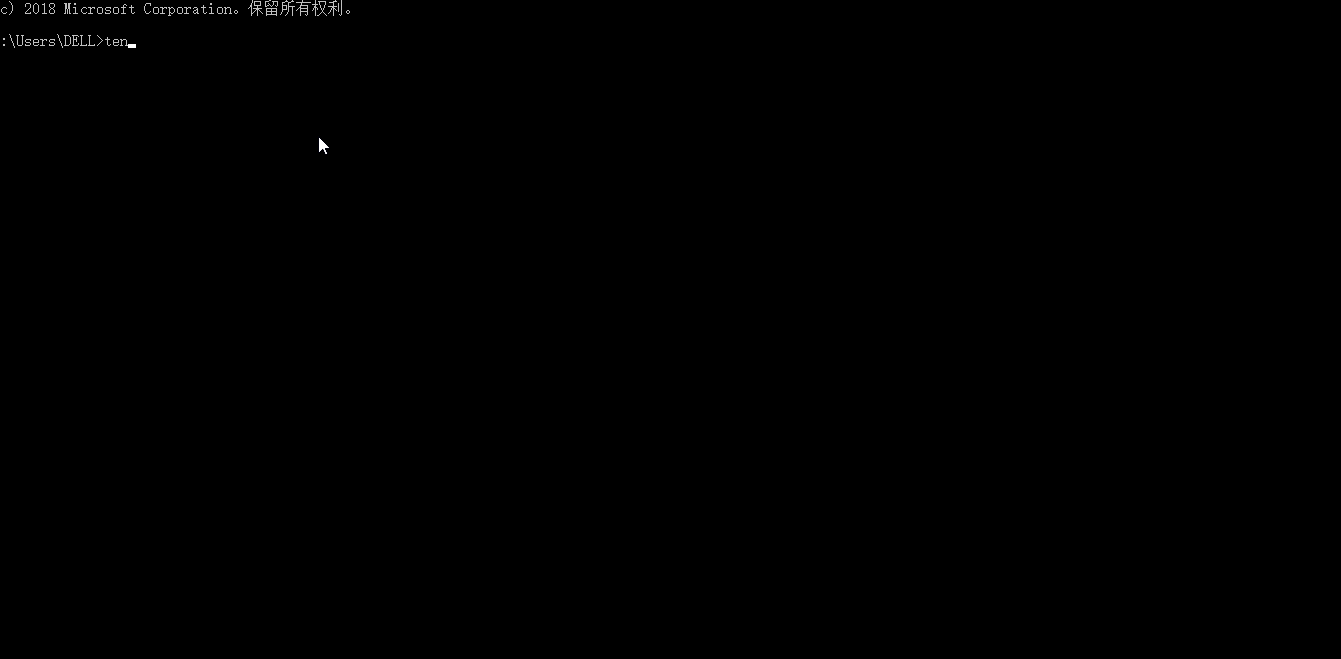

• Tensorboard的操作

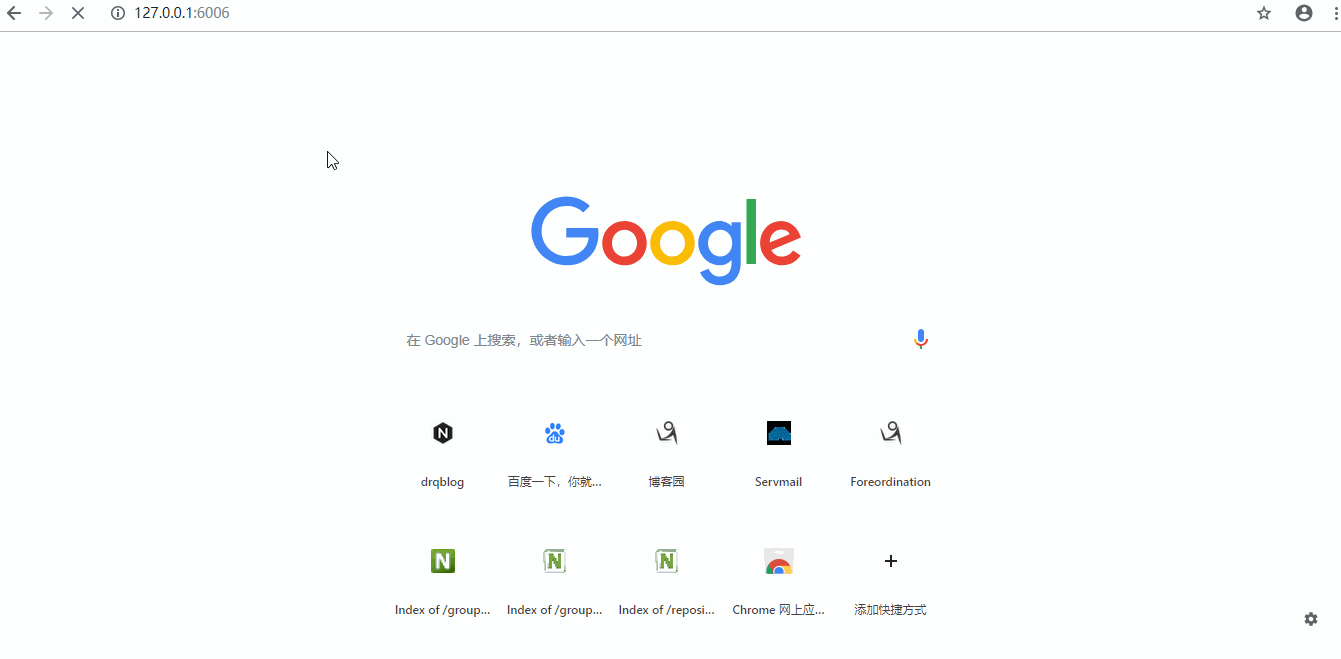

• 利用Google Chrome查看图形化差异
